Unveiling Soil Biodiversity
One of the key components for successful plant growth is soil biodiversity. The ratio of fungi to bacteria plays a particularly important role here, as it significantly influences plant growth and resilience to pests and diseases.

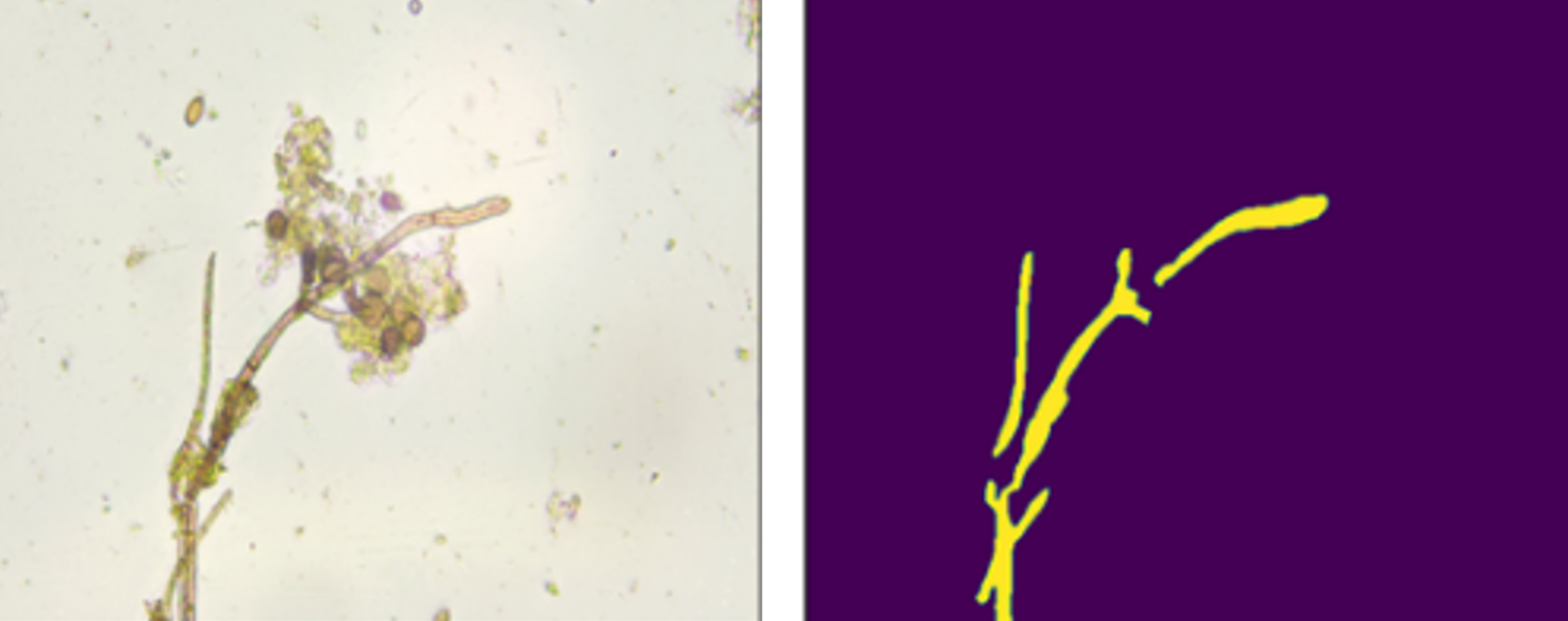

Until now, this ratio could only be determined through chemical analysis. The research project ELISE (Electronical Lab for Intelligent Soil Examination) has changed that. Hermann Ketterl, Professor for Measurement and Control Technology at the Faculty of Mechanical Engineering of OTH Regensburg and his team developed an innovative method to precisely measure the fungus-bacteria ratio without the use of chemical processes. The project was realized in close cooperation with Digital Workbench GmbH from Wettstetten and Agrarservice Hägler from Wernberg-Köblitz.
Soil Sampling Tracked with GPS Accuracy

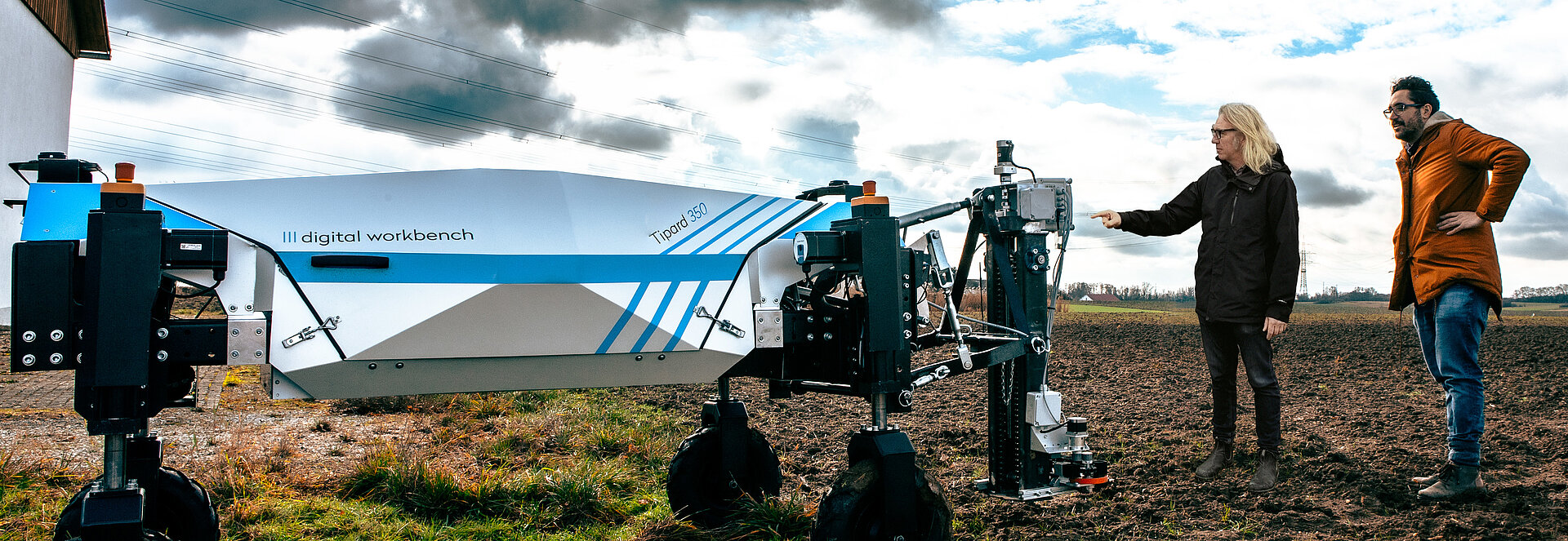

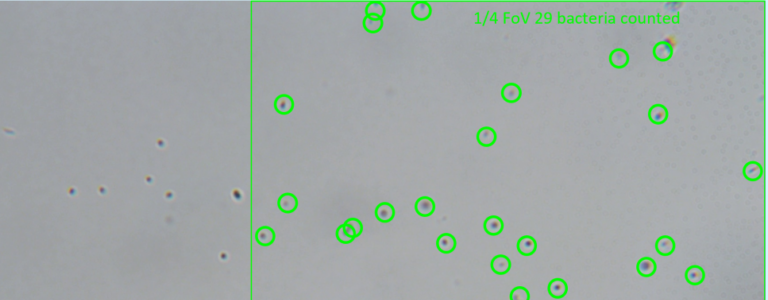

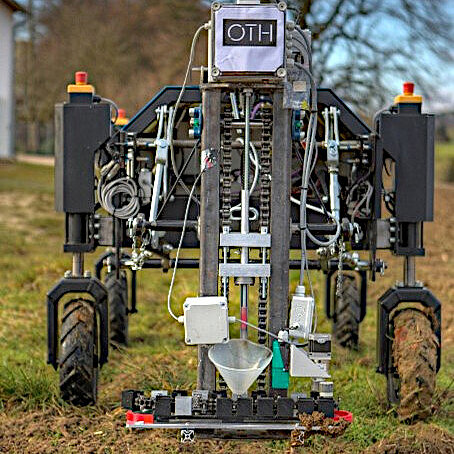

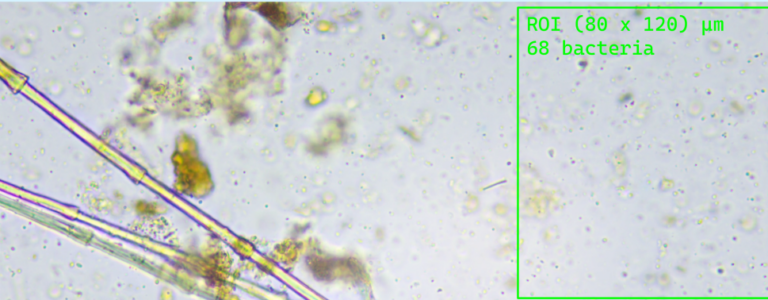

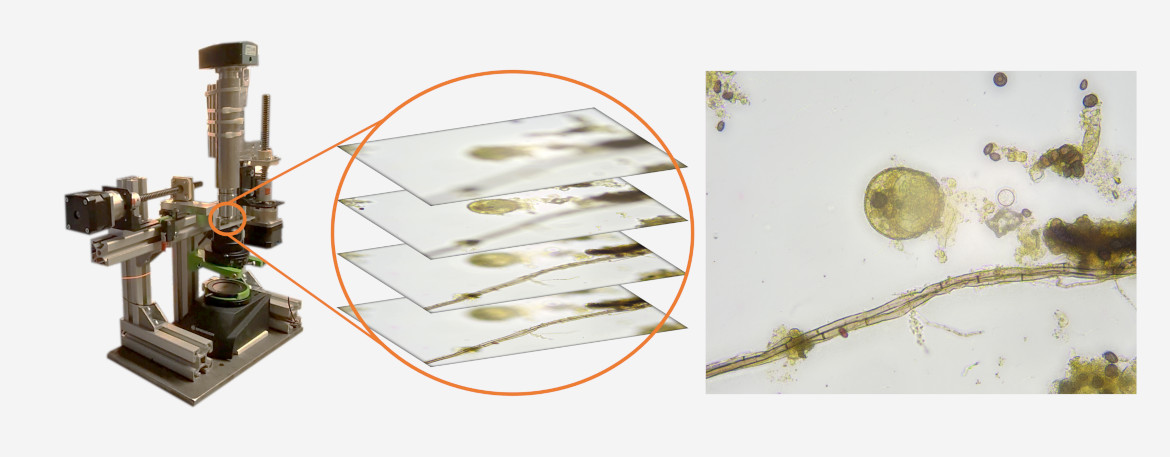

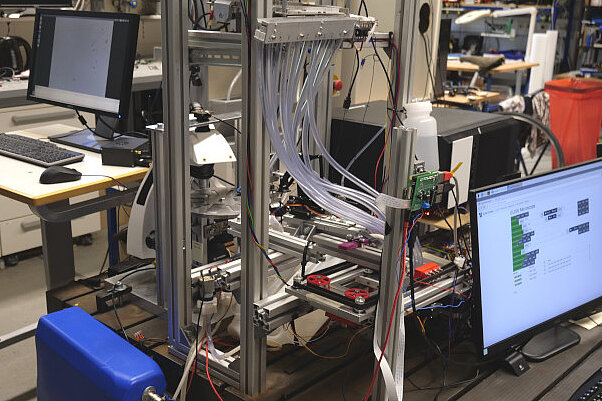

Ketterl and his team designed a fully automated workflow to capture and analyze soil samples with remarkable precision: First, an autonomous robot drives over the study area and takes soil samples at predefined positions. These are then transferred to a base station, where the samples are automatically sieved. After that, a granule is mixed with water to form a defined suspension, applied to a microscope slide, and automatically passed on to the microscope where the sample is analysed.
Better Cultivation Methods Possible with ELISE
By developing a functional model as part of the project, it was possible to demonstrate that sample preparation and analysis can be carried out fully automatically with the robot. Since the robot can repeatedly visit the exact same sampling points with GPS accuracy and record a large number of sample points, statistical evaluation of the data is possible. This enables farmers to monitor the soil independently and develop cultivation methods and fertilization strategies that take soil biology into account and are adapted to the respective local and operational conditions.
Finding Your “Personal Niche” in Research
Under the guidance of Ketterl, Tobias Heinrich, a research assistant at OTH Regensburg, began his work on the project. Heinrich had first studied mechanical engineering in Regensburg, earning a bachelor's degree. It was during his Master’s in Industrial Engineering that he came into contact with Ketterl and thus with the ELISE project: Heinrich had found his "personal niche", a subject area that both inspires and moves him. "A country like Germany, which is too strongly influenced by business economics, loses its ability to produce its own goods over time," he is convinced. "We must give the soil time to regenerate and at the same time act more in harmony with nature."
I want a world where natural resources are used with humility and not for economic gain.Tobias Heinrich, research assistant, OTH Regensburg
To ensure sustainable and regenerative agriculture, soil—which also serves as a major CO₂ reservoir—must receive greater attention and a stronger focus within the scientific community. According to Heinrich, the OTH Regensburg is making an important contribution in this area through its research activities.
In his academic work within the ELISE project, Heinrich found exactly what he believes researchers need at the beginning of their academic career: a topic that sparks personal enthusiasm. He also emphasized the excellent and supportive collaboration with Ketterl. The project leader's openness to input has greatly benefited him personally.
From ELISE to SPIN-FERT – Collaboration Continues
Following the conclusion of the ELISE project, Ketterl and Heinrich continue to work together. In 2024, the EU project SPIN-FERT (Innovative practices, tools and products to boost soil fertility and peat substitution in horticultural crops) was launched.
In this project, the researchers are working on integrating agro-industrial waste to enhance soil fertility, once again applying innovative approaches such as AI-supported soil assessment tools.
